CEA have been devoting to LED Batten Light design and manufacture since 2010,this linear lighting is a perfect replacement for T5 and T8 flourescent lamp. Many office owners and office lighting designers prefer lines of light. The reason is simple. Not only do light lines come in a minimalistic design,they also offer more choices and flexibility.Short or long lines and luminaires, standalone luminaires, different shapes and even a variety of colors,anything is possible.IP20 and IP40 led batten light,all these benefits come at a competitive price while still complying with office lighting norms.LED Batten light is a superb light line range with a slim, minimalistic design and a high lumen output to illuminate the brightest office spaces. But with comfortable, low levels of glare it's also easy on the eye.That makes LED Batten Light ideal for linear applications, as well as standalone suspended or surface-mounted luminaires. A range that offers the ultimate flexibility and unlimited possibilities.LED Batten Light design flexibility comes in the form of different lengths, colors and light outputs. All with high efficiency up to 120 lm/W. Add to that attractive pricing, and with LED batten light you can also enjoy excellent value that ensures a superb total cost of ownership.
LB3 series is the 1st generation of IP40 LED batten light,and it is the most popular batten light ever in the market.

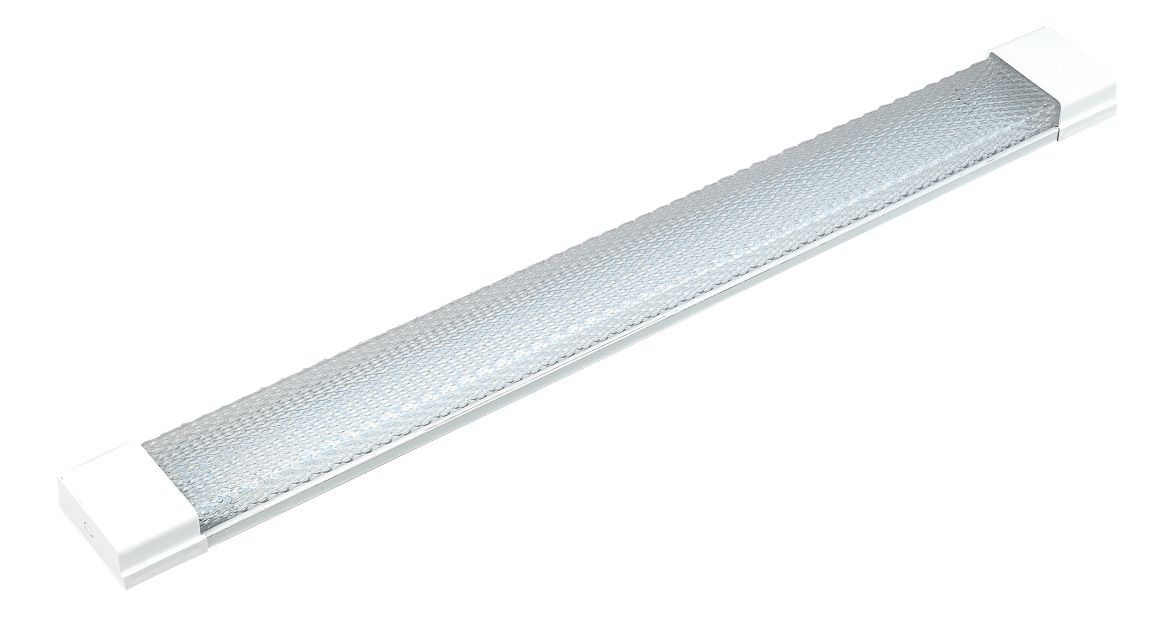

80W IP40 LED batten light LB3 series is the most popular batten light model,it is a remarkable replacing product for T8 or T5 flourescent light,it inherits high effiencicy of tube light and revoluted to easier mounting,could be either wall mounted or suspending mounted.
IP40 LED batten light LB3 is designed for easy mounting and wiring,non-flammable material, electrical parameter is matching IEC standard.
Application:

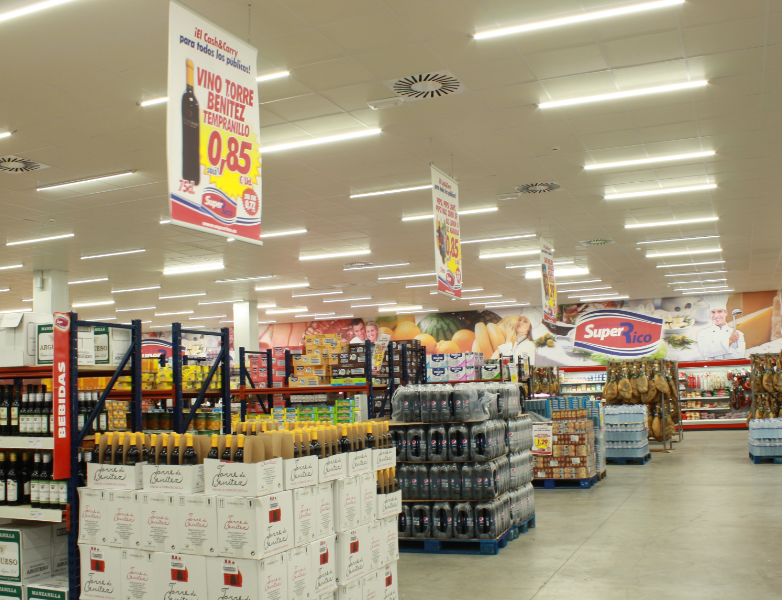

They are wilded used in offices,workshop,school,malls,walk ways,corridors and etc.
Material : Metal alloy base + PC opal diffuser/Prismatic diffuser.
Model : LB3-1200-80W
Power : 80w
Ra : 80
Lumen : 9600 lm
Effiencicy : >120lm/w
Voltage : 85-265V,50/60Hz
Length : 1205mm(4feet)
Other models related : ip20 led batten light,ip54 led batten light,ip65 led batten light
CEA have been devoting to LED Batten Light design and manufacture since 2010,this linear lighting is a perfect replacement for T5 and T8 flourescent lamp. Many office owners and office lighting designers prefer lines of light. The reason is simple. Not only do light lines come in a minimalistic design,they also offer more choices and flexibility.Short or long lines and luminaires, standalone luminaires, different shapes and even a variety of colors,anything is possible.IP20 and IP40 led batten light,all these benefits come at a competitive price while still complying with office lighting norms.LED Batten light is a superb light line range with a slim, minimalistic design and a high lumen output to illuminate the brightest office spaces. But with comfortable, low levels of glare it's also easy on the eye.That makes LED Batten Light ideal for linear applications, as well as standalone suspended or surface-mounted luminaires. A range that offers the ultimate flexibility and unlimited possibilities.LED Batten Light design flexibility comes in the form of different lengths, colors and light outputs. All with high efficiency up to 120 lm/W. Add to that attractive pricing, and with LED batten light you can also enjoy excellent value that ensures a superb total cost of ownership.
LB3 series is the 1st generation of IP40 LED batten light,and it is the most popular batten light ever in the market.
80W IP40 LED batten light LB3 series is the most popular batten light model,it is a remarkable replacing product for T8 or T5 flourescent light,it inherits high effiencicy of tube light and revoluted to easier mounting,could be either wall mounted or suspending mounted.
IP40 LED batten light LB3 is designed for easy mounting and wiring,non-flammable material, electrical parameter is matching IEC standard.
Application:
They are wilded used in offices,workshop,school,malls,walk ways,corridors and etc.
Material : Metal alloy base + PC opal diffuser/Prismatic diffuser.
Model : LB3-1200-80W
Power : 80w
Ra : 80
Lumen : 9600 lm
Effiencicy : >120lm/w
Voltage : 85-265V,50/60Hz
Length : 1205mm(4feet)
Other models related : ip20 led batten light,ip54 led batten light,ip65 led batten light
| Model | Power | Dimension | Input Voltage | Lumen Flux | Efficacy | Ra | Power Factor | CCT | Lifespan |
| LB3-600-20W | 20W | 605x60x25 | 85-265V | 2400 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-40W | 40W | 1205x60x25 | 85-265V | 4800 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-50W | 50W | 1205x60x25 | 85-265V | 6000 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-60W | 60W | 1205x75x25 | 85-265V | 7200 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-80W | 80W | 1205x75x25 | 85-265V | 9600 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-100W | 100W | 1205x95x25 | 85-265V | 12000 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
| LB3-1200-120W | 120W | 1205x95x25 | 85-265V | 144000 lm | 120 lm/w | 80 | >0.95 | 3000-6500K | >30000 Hrs |
