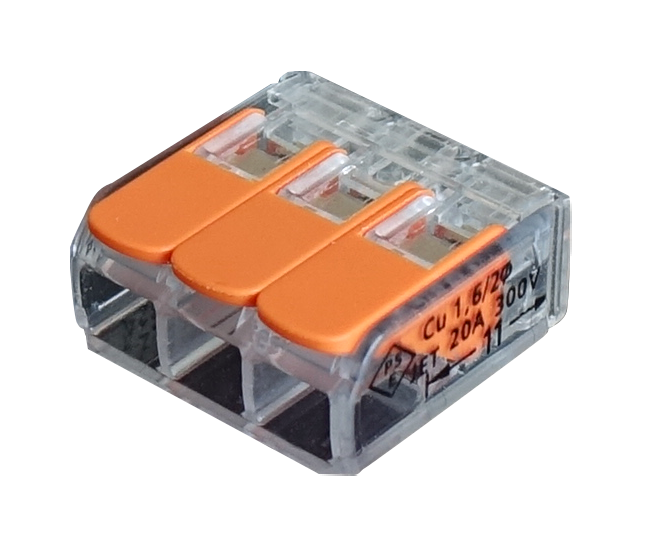

Wire Connectors, 221 Series Lever-Nuts Assortment,3-port,Compact Splicing Wire Connector

If a small splicing connector is helping keep things cool, then the pwc 221 must be behind it all. Their simple, ergonomic design and global approvals have convinced the cooling technology manufacturers to install them in their devices. You can open splicing connectors easily and quickly. Opening the levers on the 221 Series takes very little effort. This means you can connect conductors quickly – and without any tools! While you are connecting the conductor, recessed handles on the sides ensure an easy, secure grip on the connector. Quickly and easily connect all conductor types of different cross sections using two-, three-, and five-wire connectors.

Rated : 450V 32A 3 conductor;
cross section :0.14~4 mm²
push-in wire length :11 mm

SPECIFICATIONS

• CEA 221 series wiring connectors are 40% smaller than the 222 series
• The lever nuts accommodate stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
• Ratings up to 32 A/450 V and 105°C maximum continuous operating temperature allow the 221 Series Splicing Connectors to be used at ambient temperatures up to 85 °C (T85)
• Approvals like CQC or CE allow them to be used in worldwide applications.
• You can now test the voltage from two different sides – even when they are installed.

• [EXTREMELY EASY TO USE]: You can open the splicing connectors easily and quickly. Opening the levers on the 221 Series takes very little effort. This means you can connect conductors quickly – and without any tools! While you are connecting the conductor, recessed handles on the sides ensure an easy, secure grip on the connector.
• [PERFECT SPECIFICATIONS]: The lever nuts accommodate stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG). Ratings up to 32 A/450 V and 105°C maximum continuous operating temperature allow the 221 Series Splicing Connectors to be used at ambient temperatures up to 85 °C (T85), making them ideal for small and large loads.
• [MINIMALIST DESIGN] The new 221 series wiring connectors are 40% smaller than the 222 series, helping to further reduce space inside junction boxes. The compact, tool-less design is a great way of connecting cables. They are suitable for use with stranded and solid cables and are ideal for use in domestic or industrial wiring.
• [TWO TEST SLOTS] With the new 221 Series Splicing Connectors, you can now test the voltage from two different sides – even when they are installed. The connectors have two test slots right where the logo imprint appears: one in the conductor entry direction and one on the opposite side. This accessibility provides extremely convenient testing conditions, even after installation, within a wide range of applications.
• [GENUNIE KIT] Wire connectors manufactured by CEA. They come with convenient case for ease of use when you're on the job.
