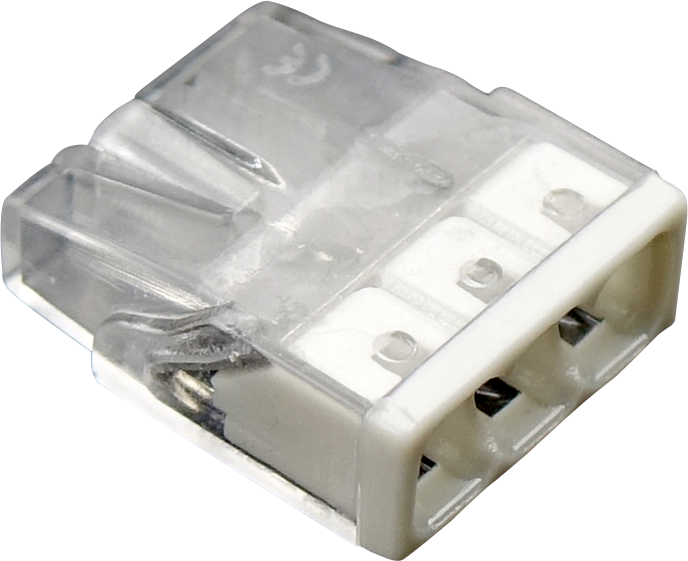

compact push wire connector for junction boxes,3-wire connector,transparent housing connector

push wire connector in Distribution Boxes during distribution box retrofits or expansions,conductors often require extensions or additional clamping points.Individual push wire connectors are approved as interconnect components for building wiringapplications per EN 60998. Application standards for building installation (e.g., Parts 510 and 520 from DIN VDE0100) also place the following requirements on junctionbox connectors:
•They must be arranged so that operation, inspection,maintenance and access to the removable connectors is simplified.
• It must be possible to test them.
• Conductors connected from outside must be clearly and permanently assigned to their associated circuits.

compact push wire connector for junction boxes and solid conductors description and installation:

This compact push wire connector is designed in small size and for solid conductors,transparent housing.The transparent housing shows if conductors are fully inserted.Within the colored base,a clear port shows if the conductor's strip length is correct.
Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side.
Advantages:
*Mount carrier onto DIN-35 rail or via screws-easily and quickly.
*Accommodate three 2.5mm2(12AWG) connectors in a single carrier.
*Easily exchange connectors.
*Large marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen

compact push wire connector for junction boxes,3-wire connector,transparent housing connector.

3 port smk push-in wire connector manufacturer,we are professional wire connection provider.
pwc 203 push wire connector is compact design for limited space wire connecting.
Rated : 400V 24A 3poles
suitable cross section : 0.5-2.5 mm²
push-in wire length:11mm
dimension:5.95x13.9x16.4 mm
